In order for this to work configfs must be available so CONFIGFS_FS must be y or m in config. This patch adds marking one of gadgets.

Sfo15 311 Configfs Gadget An Introduction

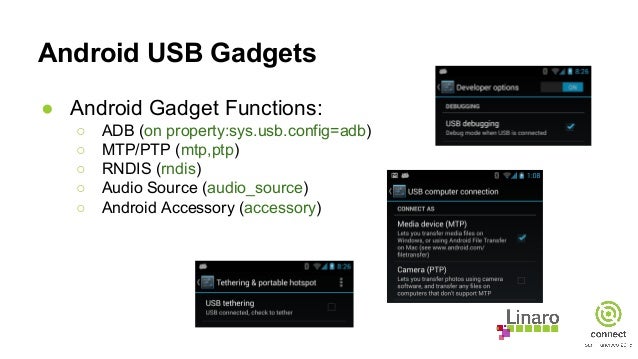

Android composite driver was Androids solution for dynamic gadget function switching prior to the ConfigFS gadget being merged.

Usb gadget configfs. USB Gadget Tool uses ConfigFS - an userspace API inside the Linux Kernel - for creation of arbitrary USB composite devices. A USB Linux Gadget is a device which has a UDC USB Device Controller and can be connected to a USB Host to. The concepts described above translate to USB gadgets like this.

USB gadget Con gfs Userspace The idea example On implementation Status Example Examples prologue modprobe libcomposite mount none cfg -t configfs cfgusb_gadget mkdir cfgusb_gadgetg1. The USB gadget device setup can be done via configfs by creating directories and manipulating files. UDC bind a gadget to UDCunbind a gadget.

TheUSBcompositegadget frameworkinLinuxkernel letsuserscombineoneormoregadget functionsandexposesasasingle composite gadget functiontotheUSBhost. For more information on configfs please see Configfs - Userspace-driven Kernel Object Configuration. This group contains sub-groups corresponding to created USB gadgets.

Hosts which expect the OS Descriptors ask only for configurations index 0 but linux-based USB devices can provide more than one configuration. Windows also lists the devices manufacturer as Microsoft regardless of what I set in strings0x409manufacturer. DWC3 gadget receive a USB bus reset interrupt.

Go to configfs directory for USB gadgets CONFIGFS_ROOTsyskernelconfig adapt to your machine cd CONFIGFS_ROOTusb_gadget create gadget directory and enter it mkdir g1 cd g1 USB ids echo 0x1d6b idVendor echo 0x104 idProduct USB strings optional mkdir strings0x409 US English others rarely seen echo Collabora strings0x409manufacturer echo ECM strings0x409product create the only configuration. USB Gadget ConfigFS Our hero finally arrives in 311 What is it. Historically this function has been a part of Android composite gadget driver.

And the gadgets serial-number is nowhere to be found. The attributes of a gadget. This is similar to the compositec patch because for configFS based gadgets they do not directly register the USB composite ops and have their own routines.

The reset callback is only executed during usb_gadget_udc_reset which is specifically run when vendor UDC drivers ie. Heres a script that I use to emulate a USB mass storage device and the network link between the device and the host. A userspace program found in Linux USB HID gadget driver.

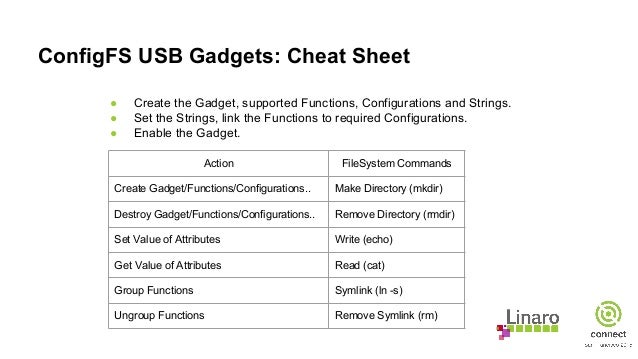

Supports all major existing gadget functions except FunctionFS and mass storage in 311 313 added conversion of FunctionFS and mass storage. A userspace API for creation of arbitrary USB composite devices using reusable kernel gadget function drivers. Linux USB gadget configured through configfs Overview.

When connected to a Windows host my gadget always shows up in the Device Manager as USB Serial Device COM instead of showing up with the right product name. This USB gadget function implements MTP functionalty. A gadget has its config group which has some attributes idVendor idProduct etc and default sub-groups configs functions strings.

Add handling of OS Extended Compatibility descriptors from configfs interface. Hid_gadget_test devhidg0 keyboard. Run a program which writes to devhidg eg.

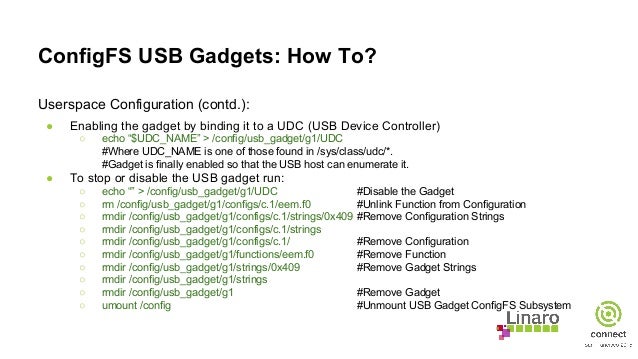

Connect the gadget to a host preferably not the one used to control the gadget. Write UDCs name found in sysclassudc to bind a gadget empty string. OS Extended Compatibility descriptors support.
